Shelving 370mm / 470mm / 560mm

The most versatile and hygienic storage your facility will find.

Modular shelving units have been developed and manufactured for different facilities’ storage and organisation needs.

From restaurants, where you need to store food or utensils, to a hotel or laundry, where you need to store other types of products, such as cleaning products, clothes, etc.

Its modularity and versatility allow you to create the shelving model you need, choosing from our different lines (370/470 and 560 GN (Gastronorm)), heights (1670 mm and 2000 mm) and the levels you need.

All this with the highest quality and hygiene thanks to food hygiene certificates, such as the NF certificate, and load capacity, which can withstand up to 200 kg/m, a result obtained thanks to Itecons.

Shelving 370mm / 470mm / 560mm

Installation

Modular

Temperature

Positive and Negative

  • It is certified:
    • With Food Hygiene Certificate.
    • It has also been tested by Itecons for its load-bearing capacity, reaching 200 kg/m².
  • Quick and easy assembly.
  • Easy to clean.
  • High-strength materials.

Product certified in:

  • Technical Specifications Shelving

    • Industrial shelving made of high strength polyethene.
    • Made from 15-micron anodised aluminium.
    • Sizes available in 370 mm, 470 mm, and 560 mm (GN).
    • L-, U-, M-, T-shaped configurations
    • Resistant to temperatures from -40ºC to +80ºC
    • Support for various loads of up to 200 kg/m in shelves equal to or less than 1035 mm and up to 150 kg per shelf in shelves between 1035 mm and 1580 mm long.
    • Dishwasher-safe shelves.

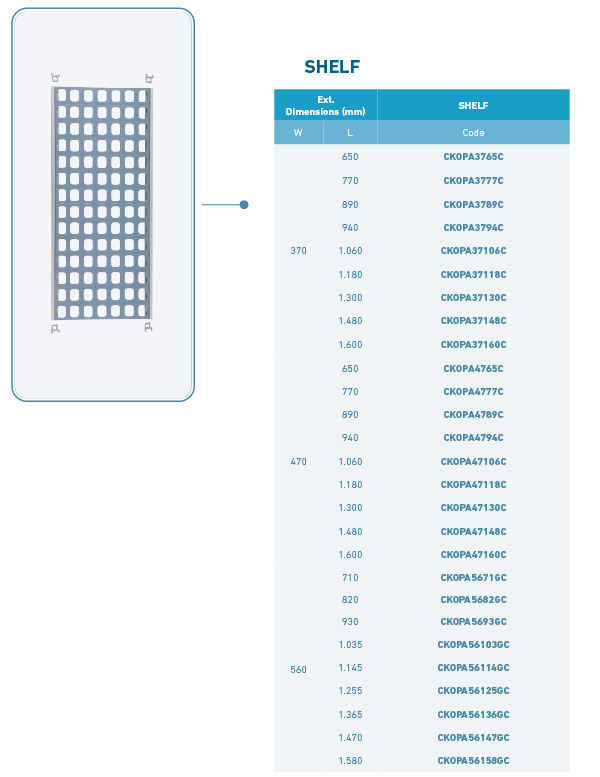

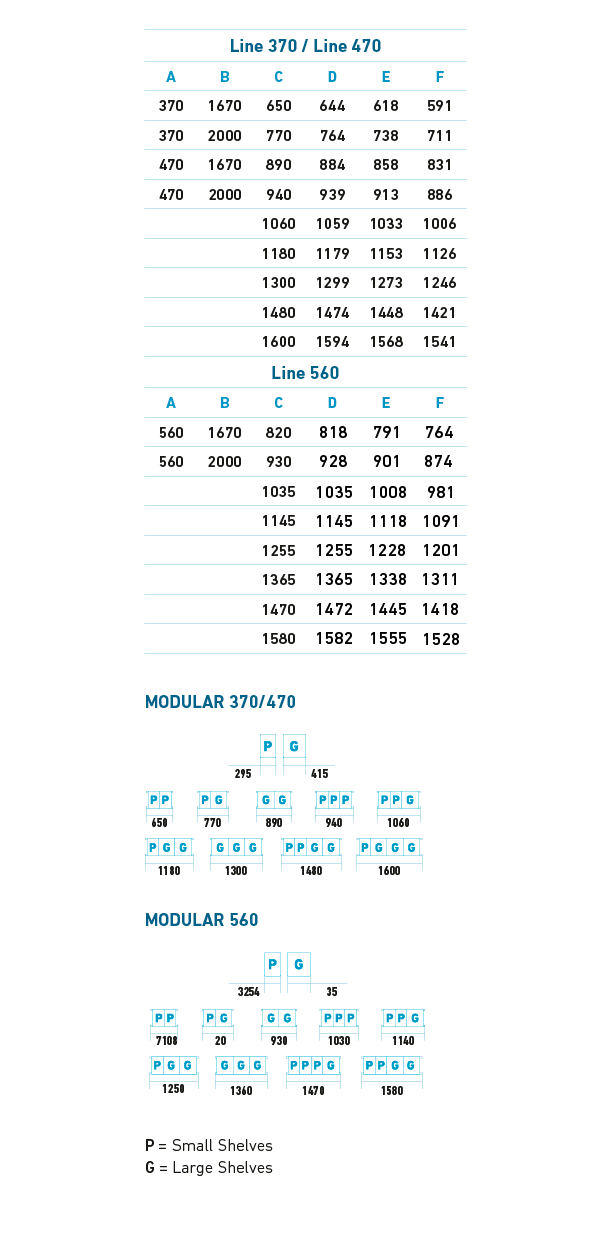

    Technical Specifications:

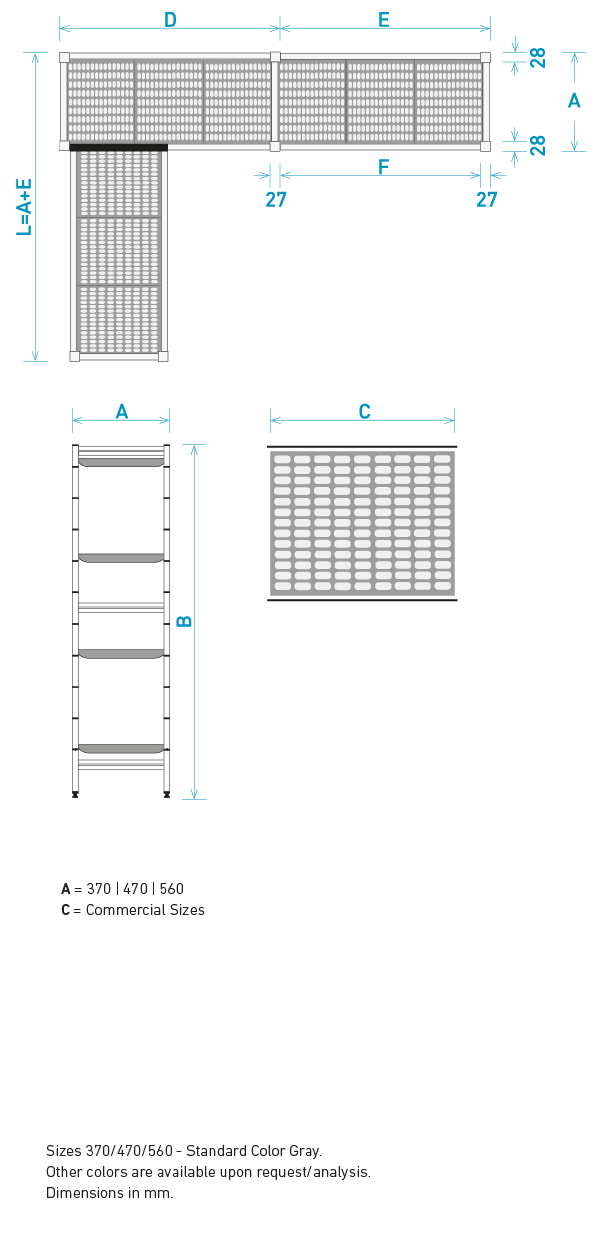

    Estanterias-1
    Estanterias-2-EN
  • Technical Specifications Floor Bench

    • Industrial shelving made of high strength polyethene.
    • Made from 15-micron anodised aluminium.
    • Sizes available in 370 mm, 470 mm, and 560 mm (GN).
    • Resistant to temperatures from -40ºC to +80ºC.
    • Dishwasher-safe shelves.

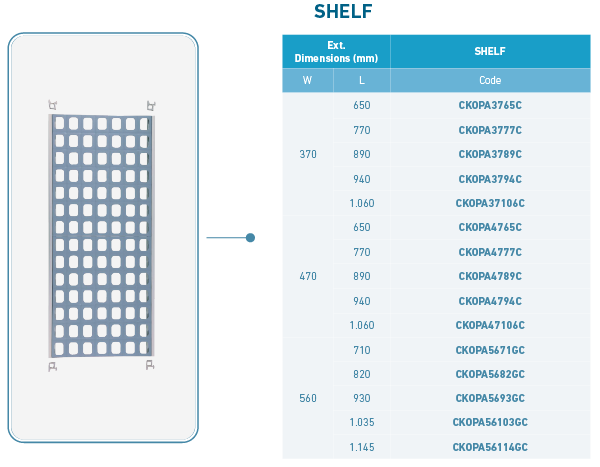

    Technical Specifications:

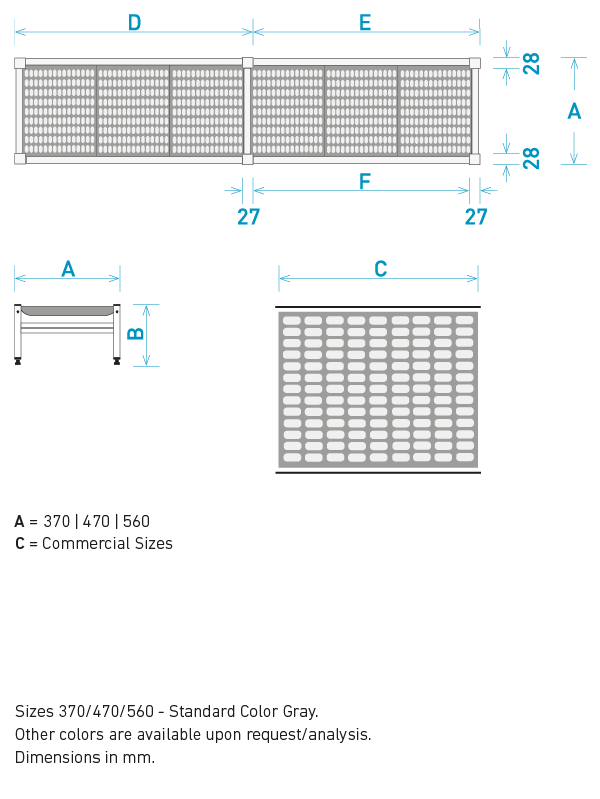

    Bancadas-de-Solo-1

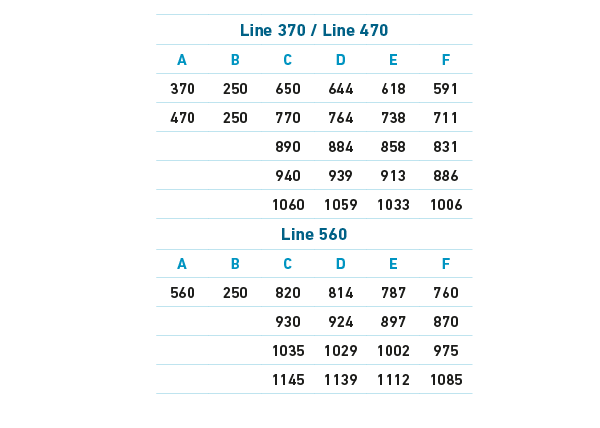

    Bancadas-de-Solo-2
  • Shelving

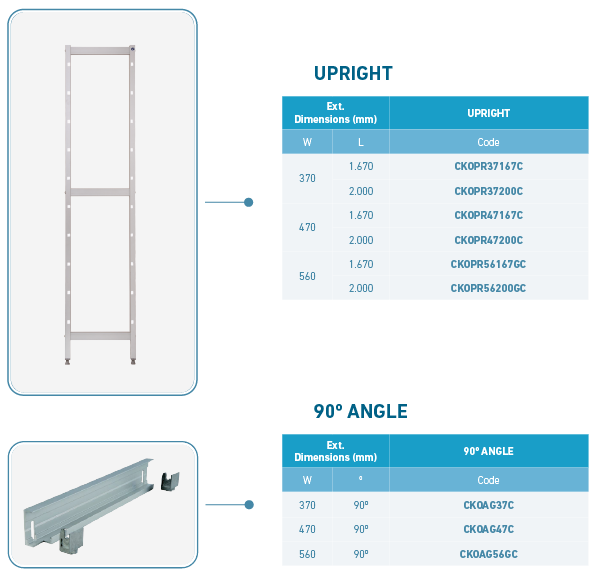

    Estanteria-1
    Estanterias-2
  • Floor Bench

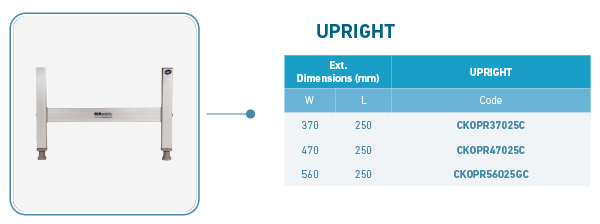

    Bancadas-de-solo-1
    Bancadas-de-solo-2
  • Components

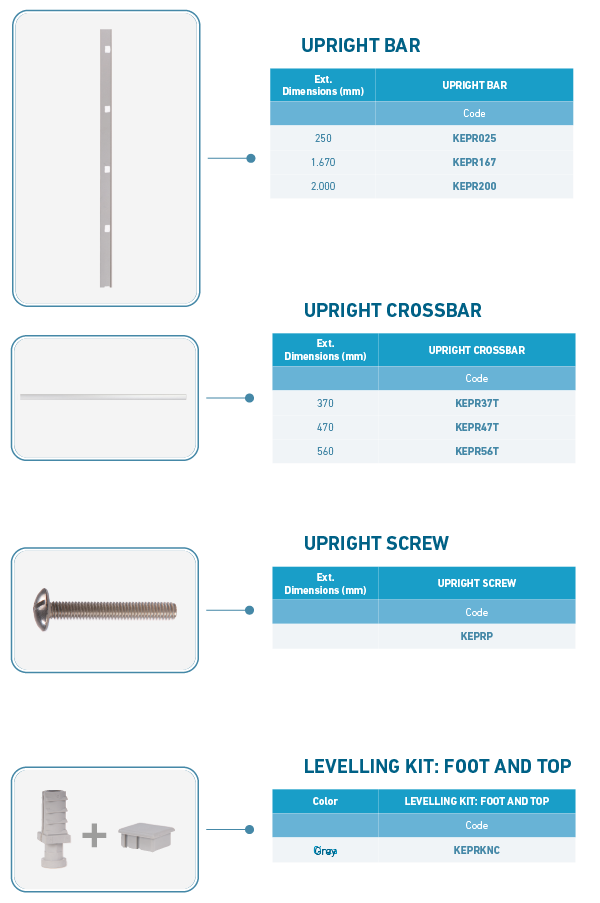

    componentes-1

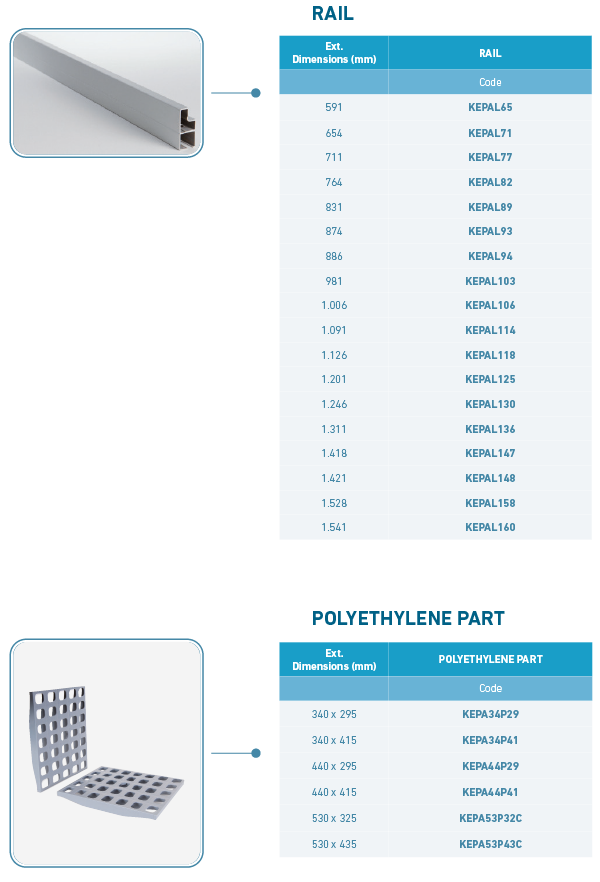

    componentes-2

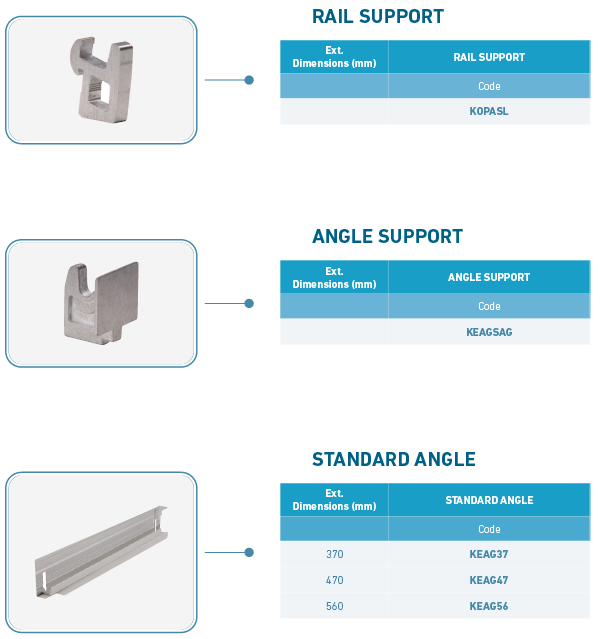

    componentes-3
  • Accessories

    Label Holder

    acessorios_suporte_etiquetas_vazio

    Support for Bottles

    Suporte-Garrafas-q5cbd6nm4e255rtjk6qeuqa9zif44p2ij5l01xyvew

    Stainless Steel Flat Shelf

    Prateleira-Plana-q5cbcvdjudmpag9xe1uw0t4quvypkbtqhlr6amflhk

    Shelf Divider

    Separador-q5cbd10kzduf841qh4anfrpif76wuig4ido36a78g8

    Wall Fix – KEPRKFP

    acessorios_fixador_parede

    Floor Fixer – KEPRKFS

    acessorios_fixador_solo

    Fixer Away 30mm – KEPRKFPA

    acessorios_fixador_afastado

    Stainless Steel Wheel

    RODA-EM-AÇO-INOXIDÁVEL-q2mykrps9lj9poajugsliwdv766ytfbtfokodj2dmw

    Galvanized Steel Wheel

    RODA-EM-AÇO-ZINCADO-q2mynl8crpe8jk73doob06rncsalwqittn147evuyw

Design the shelving your space needs.

Access our shelving configurator, where you can design the shelving your space needs, choose the width, height, and levels, and add the accessories you need.

Not only will you be able to see how your shelving unit will look, but you can also download your quote and technical specifications.

201711_SUDLISBOA_7401

If you need to know more about modular shelving or worktops, their technical specifications, different possibilities, sizes, and prices, please get in touch with us so we can send you information.
