Optima

The new concept in mini cold rooms.

OPTIMA is the new mini cold room concept specially developed to meet the most demanding cold storage and preservation needs of hotels, restaurants, catering companies, shops, and kitchens.

The goal of OPTIMA is to offer all types of facilities the possibility of having an efficient, top-quality cold room with a unique and innovative design — even in limited spaces. With OPTIMA, you not only bring innovation to your facility, but you also simplify and optimize the work for both installers and end users, thanks to its advanced features that make assembly much quicker and easier.

Thanks to its modular design, various thicknesses, sizes, and customization options, OPTIMA evolves with your business, adapting to the changes it requires and allowing you to carry out expansions, relocations, and other modifications with ease.

Optima

85mm - 105 mm - 120 mm

Flexible Height

Up to 2,600 mm

Installation

Modular – in 200 mm increments

Temperature

From -40°C to 15°C

Lighting

LED

Advantages of Optima

  • It is Certified:
    • Euroclass B-s2,d0 Fire Reaction Certification.
    • Class 3 Slip Resistance Certification for the anti-slip phenolic resin floor.
    • Class 1 Slip Resistance Certification for the stainless steel floor.
  • Easy and quick assembly from inside the cold room.
  • Adaptable to small spaces.
  • Fully modular in 200 mm increments.
  • Possibility to divide the cold room and have different temperature zones.
  • Compatible with modular shelving – the perfect complement to complete your cold room.
  • Wide range of top-quality accessories.
  • Maximum integration of components and smooth finishes for easy cleaning.

Product certified in:

  • Panel Features

    General Specifications for Optima Panels:

    • Modules of 200 mm by 200 mm.
    • Thicknesses of 85, 105, and 120 mm.
    • Insulation made of high-pressure injected polyurethane (PUR), CFC-free, with a density of 40 kg/m³ ± 2.
    • Euroclass B-s2,d0 certified (reaction to fire).
    • Panel joint system using a metal hook with anti-corrosion treatment.

    Optima Panel Cladding:

    • Pre-lacquered galvanized steel sheet with 25-micron polyester coating. Thickness: 0.5 mm, with protective film.
    • Smooth lacquered interior in Pyrenean White / Ref 9010.
    • Optional: NEW PVC interior cladding for enhanced protection against impacts and scratches.

    Exterior Options:

    • Smooth lacquered exterior in Pyrenean White / Ref 9010.
    • Optional: Antibacterial PVC.
  • Optima Without Floor

    Optima Without Floor Features (Optima 85mm – Positive):

    For positive temperatures (storage) in 4 external heights: 2.03m; 2.23m; 2.43m; and 2.63m.

    It is supplied with a U-shaped PVC profile for floor attachment, which facilitates quick installation and support for vertical panels. This profile includes both an interior and exterior baseboard as standard, ensuring easy assembly and a perfect technical and aesthetic finish.

    Additionally, you can choose from different standard pivoting door sizes: 85, 105, and 120, with the option to adjust the door leaf in the panel to fit the installation requirements.

  • Optima with Floor

    Optima With Floor Features (Optima 85mm, 105mm, and 120mm – Positive and Negative):

    For positive temperatures (storage) and negative temperatures (freezing) in 4 external heights: 2m (except for 120mm); 2.2m; 2.4m; and 2.6m.

    REINFORCED PHENOLIC FLOOR PANEL:
    This floor panel is recommended for conventional service loads. It is made of 9mm plywood (CTBX), coated with a non-slip brown phenolic resin. The material used in the factory is Finnish birch wood.

    REINFORCED STAINLESS STEEL FLOOR PANEL:9mm plywood (CTBX), coated with 0.6mm thick non-slip stainless steel sheet.

    SUPER REINFORCED FLOOR PANEL (PHENOLIC AND STAINLESS STEEL):
    These floor panels are developed for heavier and more demanding service loads. They are made with a 0.6mm pre-lacquered galvanized steel reinforcement, 9mm plywood (CTBX), coated with non-slip brown phenolic resin, Finnish birch wood, or coated with a 0.6mm stainless steel sheet.

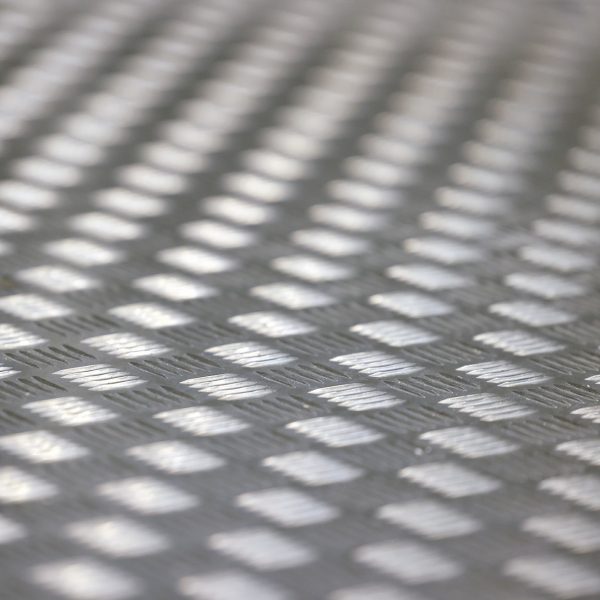

    SUPER REINFORCED ALUMINUM FLOOR PANEL:
    This is a dual-layer floor made with a 6mm thick wood base and a 3mm thick non-slip aluminum surface with a checkered relief pattern. Due to its design, composition, and features, this floor provides maximum safety and resistance for your OPTIMA cold room while maintaining the best design and appearance.

    Reinforced Phenolic Floor Panel

    20_10_2024_coldkit_ifema_096_trat

    Reinforced Stainless Steel Floor Panel

    Multimédia

    Super-Reinforced Floor Panel (Phenolic and Stainless Steel)

    Multimédia

    Super-Reinforced Aluminum Floor Panel

    panel_de_suelo_reforzado-removebg-preview
  • Doors

    Choose from different sizes of standard pivoting doors, with the option to adjust the door leaf in the panel to fit the installation requirements.

    All our pivoting doors feature a new, more durable and reliable lock, an attractive design integrated with a key lock, interior opening, right or left opening direction, and interior unlocking with a button.

    Additionally, you can opt for a sliding door, which includes a new model with an easy and quick installation guide thanks to its clip-on assembly.

    Among our new features, discover our semi-flush automatic door with opening sensors, making it easier to access the cold room, and the option to include a flush peephole. Also, our glass door for positive temperatures can be equipped with an integrated temperature and humidity controller and an interactive touch sensor that allows you to adjust the light intensity inside the cold room.

    Glass Door

    Porta-Vidro-Optima-square

    Sliding Door and Guide

    Porta-Deslizante-Square

    Pivot Door

    Porta-Pivotante-Square

    Automatic Semi-Flush Door

    Portas-Semiencastrada-Automatica-square
  • Accessories

    INCLUDED ACCESSORIES:

    • Sanitary profile around the full perimeter of the cold room.
    • Balancing valve for negative cold rooms.

    OPTIONAL ACCESSORIES COLDKIT OPTIMA:

    With Coldkit, you can enhance and customize your OPTIMA chamber with the following accessories:

    • LED lighting around the full perimeter of the cold storage sanitary profile: designed for low energy consumption and easy maintenance, preventing lamp dirt accumulation.
    • NEW Data Logger: Enables continuous monitoring and control of environmental conditions within your OPTIMA chamber, accessible at any time and from any location.
    • For negative cold rooms, you can add interior and exterior baseboards: Manufactured from white PVC, with flexible lips and a concave external finish. Mounted using hidden screws, covered by a snap-on cap integrated into the profile via co-extrusion.
    • NEW Access Ramp: Lightweight and capable of supporting up to 800 kg of dynamic load, featuring a galvanized steel frame with a non-slip aluminum coating.
    • PVC Slat Curtains: Constructed from 2mm thick transparent PVC slats, 200mm in width, with an articulated polyethylene support. Self-tapping screws included for installation.

    Access Ramp

    Rampa-de-Acesso

    Data Logger

    Datalogger2

    Modular Shelf

    020_sem_fundo

    Slat Curtain

    Cortina-Lamelas

    LED Lighting

    Iluminacion-led-Optima

    Sanitary Profile

    MAtrix-Optimaperfil_sanitario

    Interior and Exterior Corners

    Canto-Interior-Exterior
  • Options

    With Coldkit, you can complete and customize your OPTIMA cold room with the following options:

    • Replace a pivoting door with a sliding door.
    • Add a pivoting door or a sliding door.
    • Divide your OPTIMA cold room with a partition wall and add doors.
    • NEW Interactive Peephole: Simply touch the peephole from the outside to turn on the interior light of the refrigeration cold storage.
    • NEW Glass Door: For positive cold rooms, combining the best performance and technological advancements with a cutting-edge design that stands out.
    • NEW Semi-Flush Automatic Door: Features opening sensors from the exterior, a flush peephole for 60mm thickness, and an aluminum perimeter trim.
    • NEW Sliding Door and Guide: Comes with a new guide that ensures easy and quick installation with its clip-on mounting system.

Advantages of Being Our Client

You will have access to our cold room configurator, allowing you to design it according to your needs with all its accessories, including modular shelving, in just a few clicks and within minutes.

configurador-camaras-coldkit

Technical sheet, measurements, prices… Contact us so we can send you the information.

Complete your Coldkit Refrigeration cold room with modular shelving. The perfect storage solution, certified for food hygiene standards.
